How to install Router Configuration for SLT ADSL

Router Configuration for SLT ADSL

Sri Lanka Telecom is one of the leading Internet service provider in Sri Lanka.

They provide  various internet packages and internet accerious for their customers.

Also We are ready to discuss today "How to install  Router Configuration for SLT ADSL" However first you want correctly connect Router to PC.

How to connect router to computer
A. Connect phone line  from wall socket to ADSL splitter line port
B. Now connect phone code wire from splitter to your phone
C. Connect ADSL router to splitter at Data/modem interface with RJ-11 cord
D. Now connect your PC to router using RJ-45 Ethernet cable
E. Now power on your PC and router

See image - For understanding above steps

How to configuration SLT ADSl router
Here includes the steps for configuring  the TP-Link , Prolink H5004Nk , ZTE  ZXHN H108L and ZTE w 300 routers.in this article will show you TP - Link router configuration and they match for other router models also

1. Open your web browser (Fire fox, internet explore,chrome,opera)
2. Go to address bar and type 192.168.1.1 and enter
3. Now you want to enter username and password - Select user name and password according to router model  (see bellow chart )


Router Model
User name
Password
ZTE W300
admin
admin
TP Link
admin
admin
Pro – Link H50004NK
admin
Password
ZTE ZXHN H108L
admin
$LT@sltbb
4.  * Click the Interface setup and Next Internet tab at the top of the window

5.Now Include information under the Internet Setting

      * Select Virtual Circuit value as PVC 0
    * Next select VPI value as → 8
    * Enter  VCI vale as → 35
    * Now see ISP Option and select → PPPoA/PPPoE
    * Enter Service name , Username , and password Under PPPoE / PPPoA  Option - (Username and password Should be obtained from your slt service provider )
    * Select Encapsulation value as pppoELLC
    * If everything is correct Click SAVE Button
 See below for further information

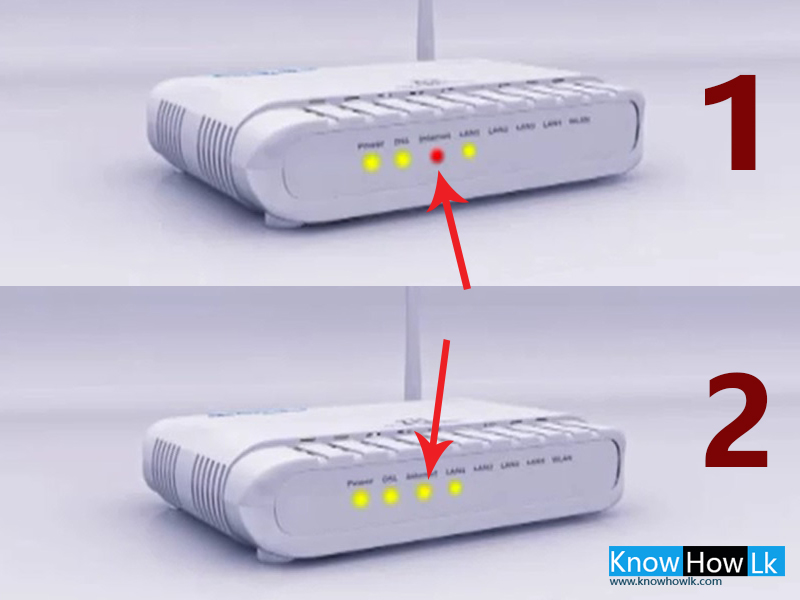

6. If everything is correct, the red signal appears in green Within a few seconds - See image bellow

How to configuration wireless network - ZTE router (WiFi connectivity )
1.  Go to Interface setup Wireless (see image)

2. * Select Access Point as Activated
    * Activate Broadcast SSID Select Yes Option
    * Type SSID (You can type any name)
    * Select WPA-PSK / WPA2 - PSK option under Authentication Type
    * Select Encryption option as TKIP / AES
    * Type Pre-Shared Key (your wifi password )
    * Now Click  SAVE Button
 See below for further information

 3. Click Maintenance tab now - see image

4. * Select SysRestart under Maintenance
    * Select System Restart with option as Current Settings
    *  Finally click Restart button - See image bellow

5. Now you can see a restart your router with in few seconds
6. If everything is correct , WLAN signal appears in green color - see image

7. Now try to connect with wifi using your laptop or android device

Watch video let's see how to do it again

Other important information
Default Router Username and Password List - according to router model

No
Router brand
Login ip address
User name
Password
01
3com
http://192.168.1.1
admin
admin
02
US Robotics
http://192.168.1.1
admin
admin
03
Belkin
http://192.168.2.1
admin
admin
04
D-Link
http://192.168.0.1
admin
admin
05
BenQ
http://192.168.1.1
admin
admin
06
Digicom
http://192.168.1.254
user
password
07
Netgear
http://192.168.0.1
admin
password
08
Thomson
http://192.168.1.254
user
User
09
Sitecom
http://192.168.0.1
sitecom
Admin
10
Digicom
http://192.168.1.254
admin
Michelangelo
11
Linksys
http://192.168.1.1
admin
admin
