How to Set up APN Settings for your dongle and android devices


APN Settings for dongle and android devices

If you hope to use internet using android phone or dongle first you want to setup APN setting.

This APN settings to be change according to  your Sim card (According to your service provider )

Now you can try to setup APN setting According to your service provider


APN settings  For Dialog Internet and MMS


APN      -    dialogbb
MMSC  -   http://mms.dialog.lk:3130/mmsc
MMS Poxy port - 8080
Protocol - IPv4

How to access to it  - These APN Settings valid for android phone
  • Go to Settings → Wireless & networks
  • Now Select Mobile network Settings → Access Points
  • Go to GPRS-BB / Dialog - BB
  • Go to → Proxy
  • Remove Proxy IP ‘192.168.122.2’ and click Ok (Once the IP is removed , Proxy will be visible as Not set’ )
  • Select Port  option
  • Remove Port 8080 and select Ok (Once the Port is removed , it will be display as ‘ Not set’
Dialog mobile broadband APN settings for MF100 modem and usb dongles

Use this apn setting
Config name - Dialog
Dial number - *99#
APN Address  for prepaid - ppwap
APN Address  for postpaid - dialogbb

Instruction to use
  • Plug the modem to usb port and install mobile partner software

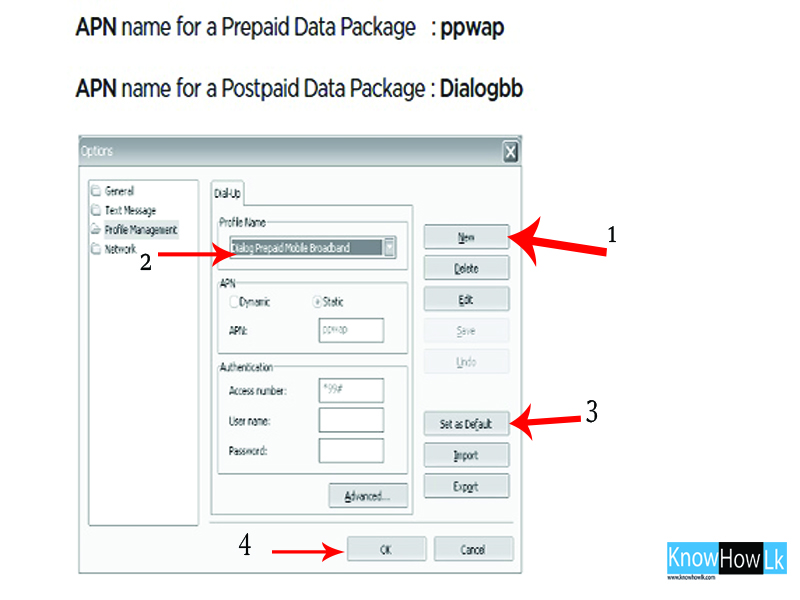

  • Now try to open mobile partner software and go to TOOLS → OPTIONS

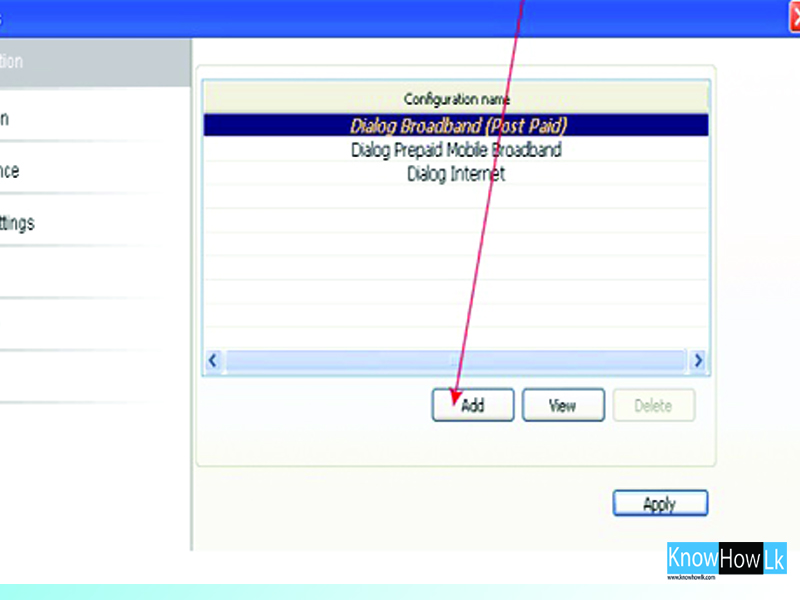

  • Select profile management → Click New to start creating a new profile
  • Try to configure profile name - example dialog mobile broadband
  • Select Static Under APN
  • Now fill the APN name according to your data package (APN Address  for prepaid - ppwap / APN Address  for postpaid - dialogbb )
  • Click Set as default
  • Click ok


  • Open mobile partner app and click setting  (UTMS Application)

  • Now select your data package - (If you want to add new APN Click Add)

      •   Now add bellow settings and click save


      Mobitel internet dongle APN Settings

      For Mobitel 3G
      APN - mobitel3g
      Dial number - *99#
      PDP type - IP
      Authentication type - PAP

      For mobitel 4G

      APN - mobitel
      Dial number - *99#
      PDP type - IP
      Authentication type - PAP


      How to setup - Android users
      • Go to  Menu and select settings
      • Select wireless and networks
      • Next Mobile Networks
      • Select Access Point Name
      • Go to Option New Apn
      • Now Add below data  -
                       Name - Hutch3G
                      APN - HUTCH3G
                      Proxy - Keep blank
                      Port - Keep blank
                      User name - Keep blank
                      Password - Keep Blank
                      MCC - 413
                      MNC - 08
                      Authentication Type - None
                      APN type - Internet


      How to setup - Iphone users
      • Go to SettingsGeneral Settings

      • Select Network Option
      • Now turn on cellular data and turn on 3G
      • Enter htwap for APN and leave everything else blank

      How to setup using HUTCH SMS and USSD
      Type WWW and sms 5879 or dial *6655# from your Hutch phone



      Airtel APN Settings for iphone

      How to access
      Settings ↦  Mobile Data / Cellular data ↦ Mobile Data Options ↦ Mobile Data Network


      • Now type below data APN field
      APN : airtellive

      Airtel Apn settinges for android users

      How to setup
      Menu ↦ Settings ↦More ↦ Mobile Networks ↦ Access Point Name


      • After click Select Access Point Names Click  + mark and enter below data (It mean add new )


      •  Click Save
