How to install Electric Water Heater (Geyser) - (Instalation guide step by step)

Installation guide for electric water heater

Electric Water Heater use for covert cool water to hot. Today in this article ready to show you How to install Electric Water Heater step by step.

Before Installation water geyser you must find few tools for it.
1. Screw driver 2. Hammer 3. Wrench 4. Drill machine 4. Thread seal tape 5.  15A plug top

Now let's see how to   install Electric Water Heater . Try to identify tools you want to install heater.

Step 01 - Connect 15A plug top to water heater (water geyser)
 01. First identify Wire colors and plug terminals
 02. There are 3 colors of wire
       Red or Bown    → Live wire
       Black or Blue  → Neutral wire
       Green with yellow line → Earth wire
03. Now identify plug top and try to connect wires according to wire colors - See image bellow
        ✶ Connect red or Brown wire to "L" marked pin Black or Blue wire connect to "N" marked pin
        ✶ Green with  yellow line wire connect to "E" marked pin

Step 02 - Water heater (Geyser ) Installation

Additional Needs for installation Water heater
✶ 2 hose pipes preferably steel  (withstand heat) ✶One hose extend socket ✶One gate valve  (Angle valve ) ✶ Thread seal tape

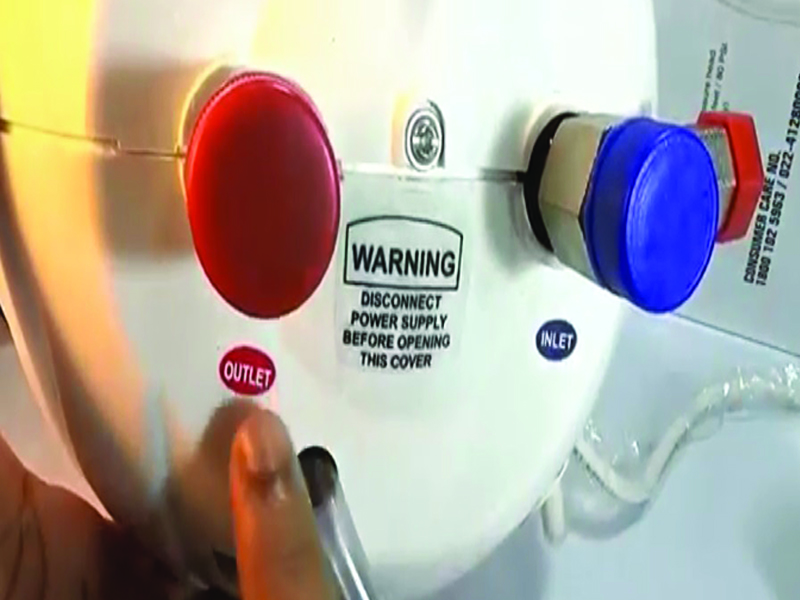

Step 03 Installation  inlet and outlet hose (see bottom of water heater )

✪  Before install 2 hose pipe apply thread seal tape for prevent water leakage

Tighten the nut using wrench (Don't put pressure reason it can be damage the threads)


✪  Now try to install gate valve (Angle valve ) .Before installing it apply thread seal  to prevent any water leakage. next install gate valve to water inlet pipe

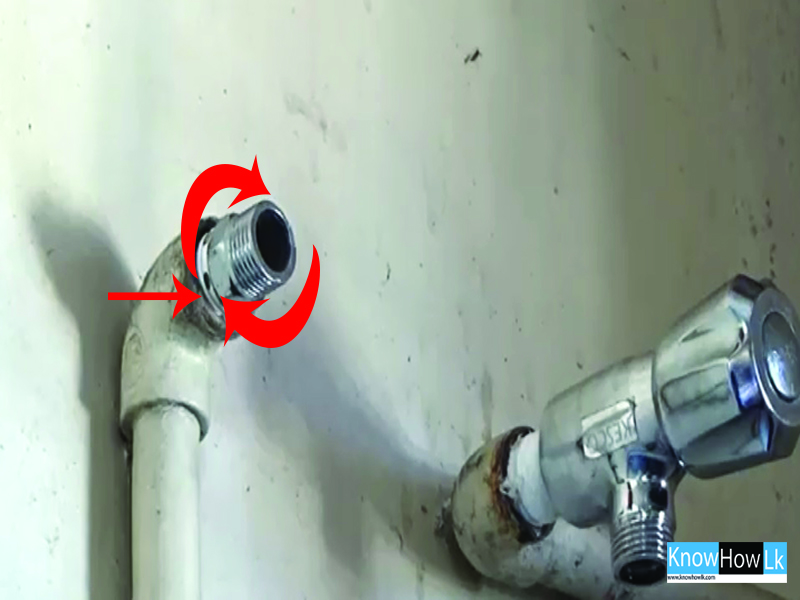

Now install "Extension socket" to outlet pipe (Also apply thread seal tape before installing )


Try to install wall mount screws for hanging water geyser (use wall mount template for it )

Now hanging the water heater carefully  and Correctly connect two hose as shown
  • Connect inlet hose of the heater to angle valve ( Gate valve )
  • Connect outlet hose of the heater to outlet pipe (your water shower)

✪ All steps done now it mean installation completed

Step 04 - How to use
  • Turn on gate valve first
  • Turn on water heater now
  • Turn on your shower now
